Iscar

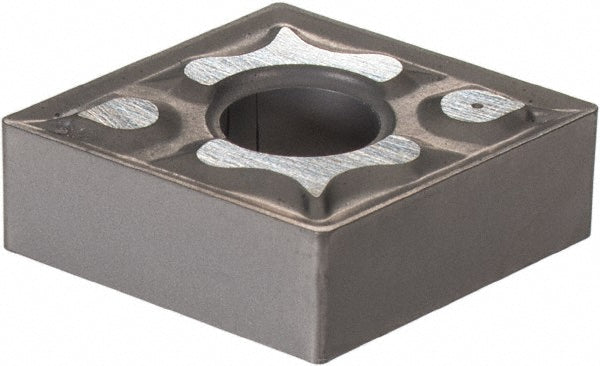

CNMG 431-TF Carbide Insert, Grade IC20 - Iscar 5503801
MFR# 5503801ISO/ANSI# CNMG 431-TFCat# CNMG 431-TFSeries Isoturn
$12.94List $16.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC20
MaterialCarbide
Description
The Iscar 5503801 is a CNMG 431-TF carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerTF
Clearance codeN
Corner radius in1/64
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 431-TF
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG 431-TF
Manufacturer gradeIC20
Maximum depth of cut0.1570
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
