Iscar

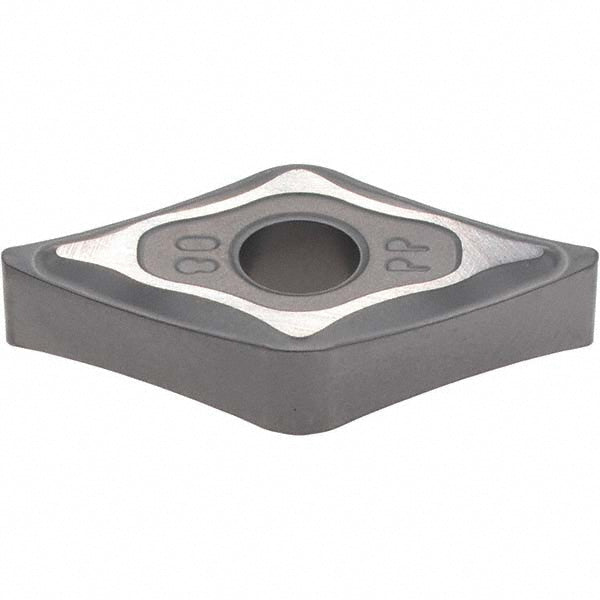

DNMG 432-PP Solid Carbide Insert, Grade IC20 - Iscar 5503811
MFR# 5503811ISO/ANSI# DNMG 432-PPCat# DNMG 432-PPSeries Isoturn
$15.91List $20.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5503811 is a DNMG 432-PP solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerPP
Clearance codeN
Corner radius in1/32
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6100
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 432-PP
Length range0.6000 - 0.6500
Manufacturers catalog numberDNMG 432-PP
Manufacturer gradeIC20
Maximum depth of cut0.1570
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
