Iscar

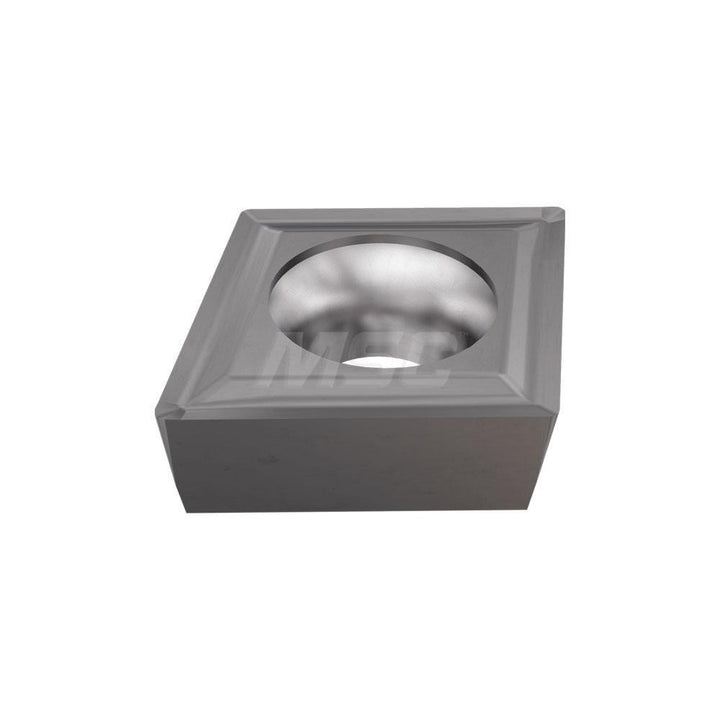

CCMT 2-1 Cermet Insert, Grade IC520N, TiCN - Iscar 5504068
MFR# 5504068ISO/ANSI# CCMT 2-1Cat# CCMT 2-1Series Isoturn
$12.86List $16.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC520N
MaterialCermet
CoatingTiCN
Description
The Iscar 5504068 is a CCMT 2-1 cermet indexable insert, grade IC520N, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialCermet
Insert shapeDiamond
Insert size code2-1
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 2-1
Length range0.0000 - 0.3000
Manufacturers catalog numberCCMT 2-1
Manufacturer gradeIC520N
Maximum depth of cut0.0790
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
