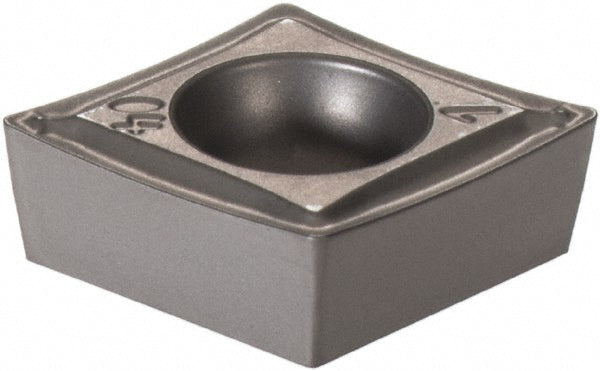

CCMT 3-1-SM Carbide Insert, Grade IC20 - Iscar 5504070

Iscar

CCMT 3-1-SM Carbide Insert, Grade IC20 - Iscar 5504070

MFR# 5504070ISO/ANSI# CCMT09T304Cat# CCMT 3-1-SMSeries Isoturn

$12.32List $15.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC20
MaterialCarbide

Description

The Iscar 5504070 is a CCMT 3-1-SM carbide indexable insert, grade IC20. Suited for universal.

Specifications

Ansi insert codeCCMT3-1
Ansi size code3-1
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3-1
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 3-1-SM
Iso insert codeCCMT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog numberCCMT 3-1-SM
Manufacturer gradeIC20
Maximum depth of cut0.0980
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeM
