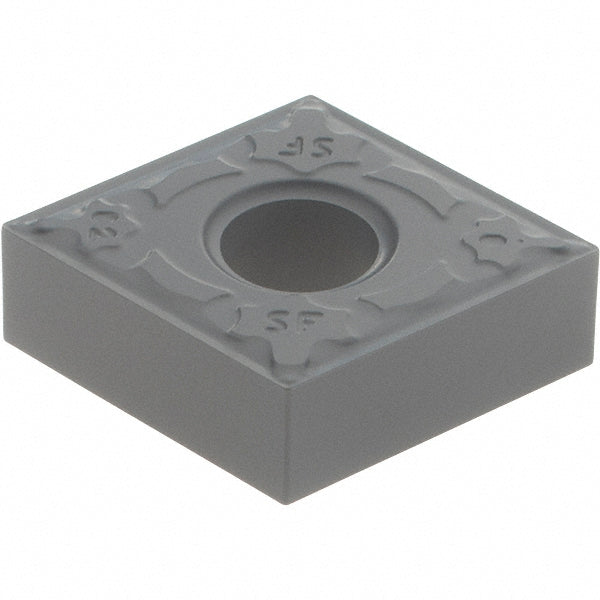

ISO 13399 Solid Carbide Insert, Grade IC428, TiC - Iscar 5504091
MFR# 5504091ISO/ANSI# ISO 13399Series Isoturn
$14.28List $18.00
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC428
MaterialSolid Carbide
CoatingTiC
Description
The Iscar 5504091 is a ISO 13399 solid carbide indexable insert, grade IC428, TiC coated. Suited for cast iron, hard material, steel.
Specifications
Chip breakerSF
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius0.0079
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code430
Insert styleCNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC428
Maximum depth of cut0.0787
Primary workpiece materialCast Iron; Hard Material; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
