Iscar

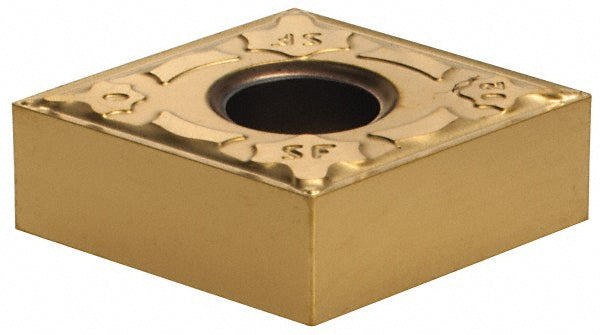

ISO 13399 Cermet Insert, Grade IC520N, TiCN - Iscar 5504092
MFR# 5504092ISO/ANSI# ISO 13399Series Isoturn
$15.44List $19.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC520N
MaterialCermet
CoatingTiCN
Description
The Iscar 5504092 is a ISO 13399 cermet indexable insert, grade IC520N, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerSF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius0.0079
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCermet
Insert shapeDiamond
Insert size code430
Insert styleCNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC520N
Material gradeC6; C7
Maximum depth of cut0.0787
Primary workpiece materialStainless Steel; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
