Iscar

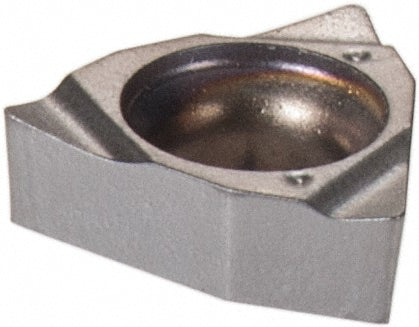

WBMT 520R Carbide Insert, Grade IC354, TiN - Iscar 5504121
MFR# 5504121ISO/ANSI# WBMT 520RCat# WBMT 520RSeries Isoturn
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTrigon
GradeIC354
MaterialCarbide
CoatingTiN
Description
The Iscar 5504121 is a WBMT 520R carbide indexable insert, grade IC354, TiN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerT
Coating finishTiN
Coating processPVD
Corner radius0.0080
Included angle80
Inscribed circle in5/32
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTrigon
Insert size code520
Insert styleWBMT
Iso codeWBMT 520R
Length0.0860
Manufacturers catalog numberWBMT 520R
Manufacturer gradeIC354
Material gradeP40
Maximum depth of cut0.0790
Primary workpiece materialStainless Steel; Steel
Relief angle5
StandardsISO 13399
