Iscar

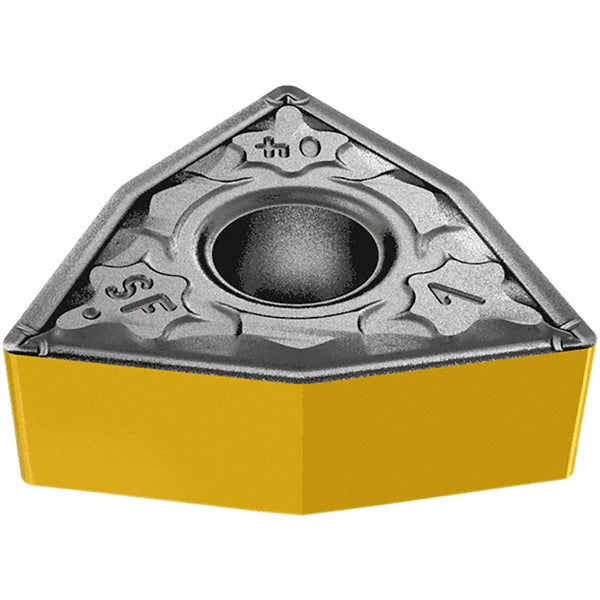

ISO 13399 Cermet Insert, Grade IC530N, TiCN/TiN - Iscar 5504123
MFR# 5504123ISO/ANSI# ISO 13399Series Isoturn
$13.10List $16.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC530N
MaterialCermet
CoatingTiCN/TiN
Description
The Iscar 5504123 is a ISO 13399 cermet indexable insert, grade IC530N, TiCN/TiN coated. Suited for stainless steel, steel.
Specifications
Chip breakerSF
Clearance codeN
Coating finishTiCN/TiN
Coating processPVD
Corner radius0.0079
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialCermet
Insert shapeTrigon
Insert size code3-0
Insert styleWNMG
Insert thickness in5/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC530N
Maximum depth of cut0.0591
Primary workpiece materialStainless Steel; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
