Iscar

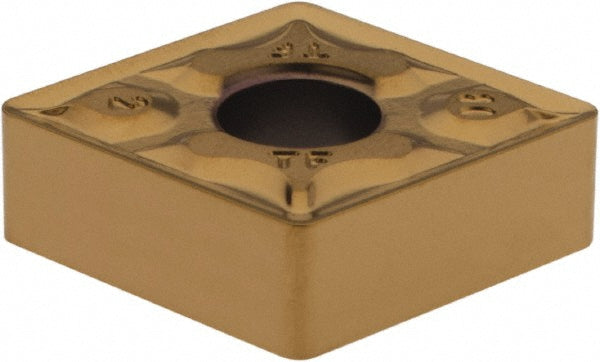

ISO 13399 Carbide Insert, Grade IC507, TiCN - Iscar 5504261
MFR# 5504261ISO/ANSI# ISO 13399Series Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC507
MaterialCarbide
CoatingTiCN
Description
The Iscar 5504261 is a ISO 13399 carbide indexable insert, grade IC507, TiCN coated. Suited for universal.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeISO 13399
Manufacturer gradeIC507
Maximum depth of cut0.1570
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
