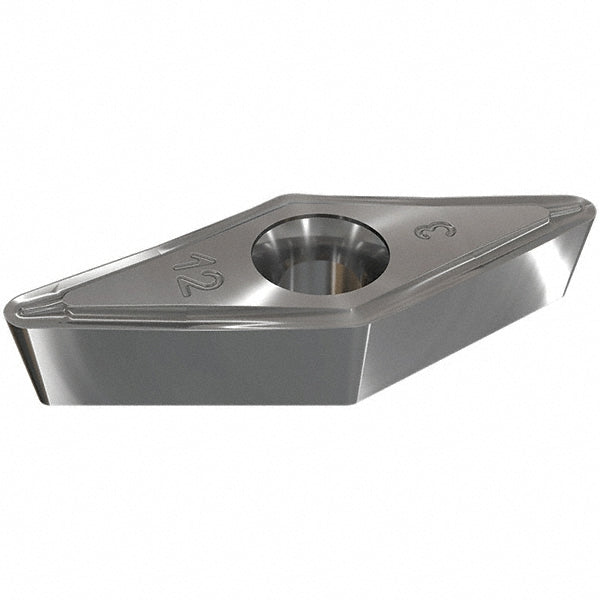

ISO 13399 Carbide Insert, Grade IC507, TiCN - Iscar 5504267

Iscar

ISO 13399 Carbide Insert, Grade IC507, TiCN - Iscar 5504267

MFR# 5504267ISO/ANSI# VCMT160404Series Isoturn

$21.67List $27.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC507
MaterialCarbide
CoatingTiCN

Description

The Iscar 5504267 is a ISO 13399 carbide indexable insert, grade IC507, TiCN coated. Suited for universal.

Specifications

Ansi insert codeVCMT331
Ansi size code331
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVCMT
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeVCMT160404
Iso size code160404
Length range0.6500 - 0.7000
Manufacturer gradeIC507
Material gradeSubmicron
Maximum depth of cut0.0984
Primary workpiece materialUniversal
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeM
