Iscar

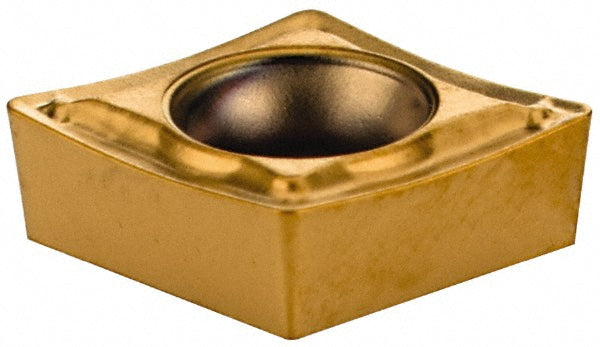

CCMT21.51 Solid Carbide Insert, Grade IC507, TiCN - Iscar 5504269
MFR# 5504269ISO/ANSI# CCMT21.51Series Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC507
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5504269 is a CCMT21.51 solid carbide indexable insert, grade IC507, TiCN coated. Suited for m, p, s.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-1
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT21.51
Length range0.0000 - 0.3000
Manufacturer gradeIC507
Material gradeC6; C7
Maximum depth of cut0.0984
Primary workpiece materialM; P; S
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
