Iscar
ISO 13399 Cermet Insert, Grade IC20N - Iscar 5504405
MFR# 5504405ISO/ANSI# ISO 13399Series Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeTriangle
GradeIC20N
MaterialCermet
Description

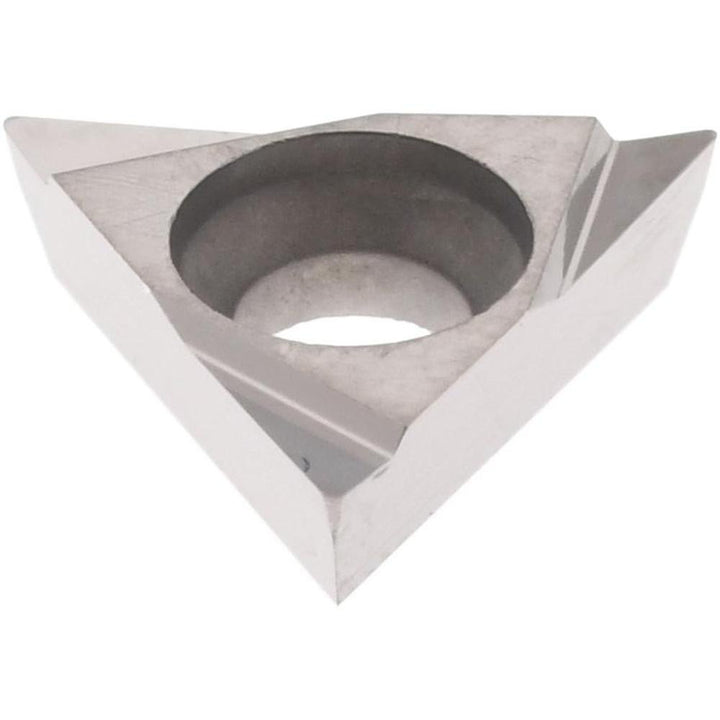

The Iscar 5504405 is a ISO 13399 cermet indexable insert, grade IC20N. Suited for stainless steel, steel.
Specifications
Coating processUncoated
Corner radius0.0079
Hole diameter0.0984
Included angle60
Inscribed circle in7/32
Insert handLeft Hand
Insert materialCermet
Insert shapeTriangle
Insert size code730
Insert styleTPGX
Iso codeISO 13399
Length0.3748
Manufacturer gradeIC20N
Material gradeC6; C7; C8
Maximum depth of cut0.0790
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle11
ShapeTriangle
StandardsISO 13399
Thickness in3/32
