Iscar

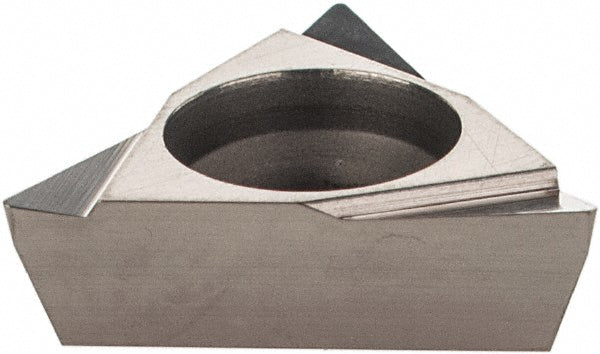

ISO 13399 Cermet Insert, Grade IC20N - Iscar 5504409
MFR# 5504409ISO/ANSI# ISO 13399Series Isoturn
$17.55List $22.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC20N
MaterialCermet
Description
The Iscar 5504409 is a ISO 13399 cermet indexable insert, grade IC20N. Suited for stainless steel, steel.
Specifications
Coating processUncoated
Corner radius0.0079
Hole diameter0.1378
Included angle60
Inscribed circle in1/4
Insert handLeft Hand
Insert materialCermet
Insert shapeTriangle
Insert size code220
Insert styleTPGX
Iso codeISO 13399
Length0.4331
Manufacturer gradeIC20N
Material gradeC6; C7; C8
Maximum depth of cut0.0980
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle11
ShapeTriangle
StandardsISO 13399
Thickness in1/8
