Iscar

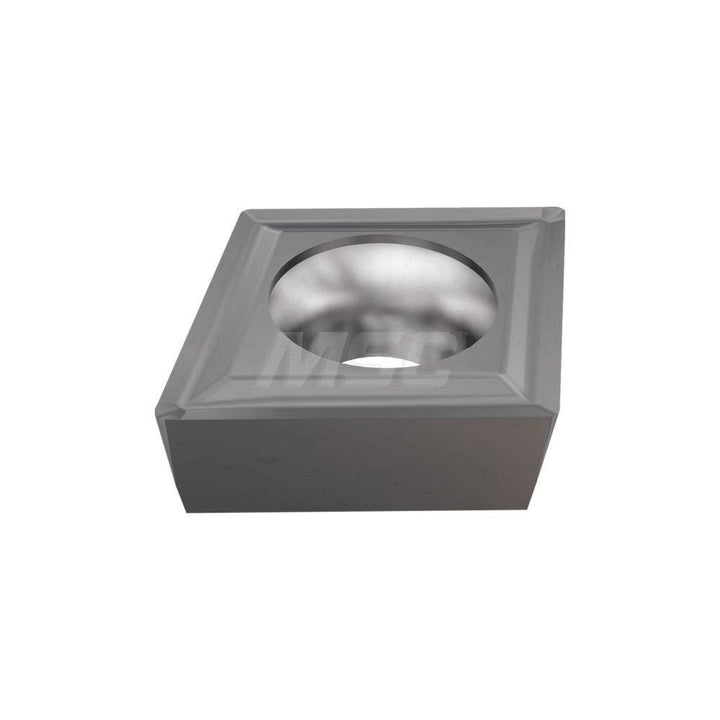

ISO 13399 Solid Carbide Insert, Grade IC30N - Iscar 5504412
MFR# 5504412ISO/ANSI# ISO 13399Series Isoturn
$17.00List $21.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC30N
MaterialSolid Carbide
Description
The Iscar 5504412 is a ISO 13399 solid carbide indexable insert, grade IC30N. Suited for hard material, stainless steel, steel.
Specifications
Chip breakerT
Clearance codeC
Coating processUncoated
Corner radius0.0079
Cutting directionLeft Hand
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-0
Insert styleCCGT
Insert thickness in3/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC30N
Maximum depth of cut0.0787
Primary workpiece materialHard Material; Stainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
