Iscar

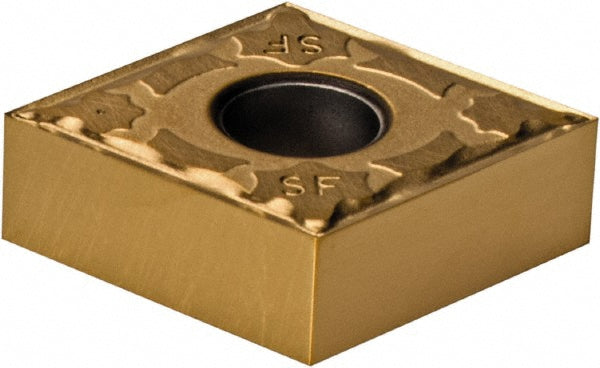

CNGG 430-SF Solid Carbide Insert, Grade IC507, TiN - Iscar 5504540
MFR# 5504540ISO/ANSI# CNGG 430-SFCat# CNGG 430-SFSeries Isoturn
$25.03List $32.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC507
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5504540 is a CNGG 430-SF solid carbide indexable insert, grade IC507, TiN coated. Suited for universal.
Specifications
Chip breakerSF
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius0.0040
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code430
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG 430-SF
Length range0.5000 - 0.6000
Manufacturers catalog numberCNGG 430-SF
Manufacturer gradeIC507
Material gradeSubmicron
Maximum depth of cut0.0590
Multi use toolYes
Primary workpiece materialUniversal
Relief angle0
StandardsISO 13399
Tolerance codeG
