Iscar

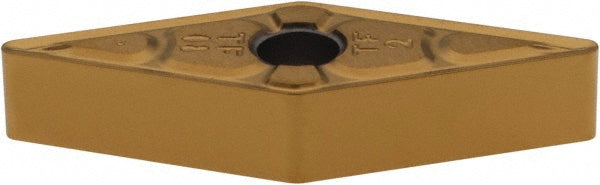

ISO 13399 Solid Carbide Insert, Grade IC507, TiCN - Iscar 5504737
MFR# 5504737ISO/ANSI# ISO 13399Series Isoturn
$25.81List $33.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC507
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5504737 is a ISO 13399 solid carbide indexable insert, grade IC507, TiCN coated. Suited for m, p, s.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.6500 - 0.7000
Manufacturer gradeIC507
Material gradeC6; C7
Maximum depth of cut0.1380
Primary workpiece materialM; P; S
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
