Iscar

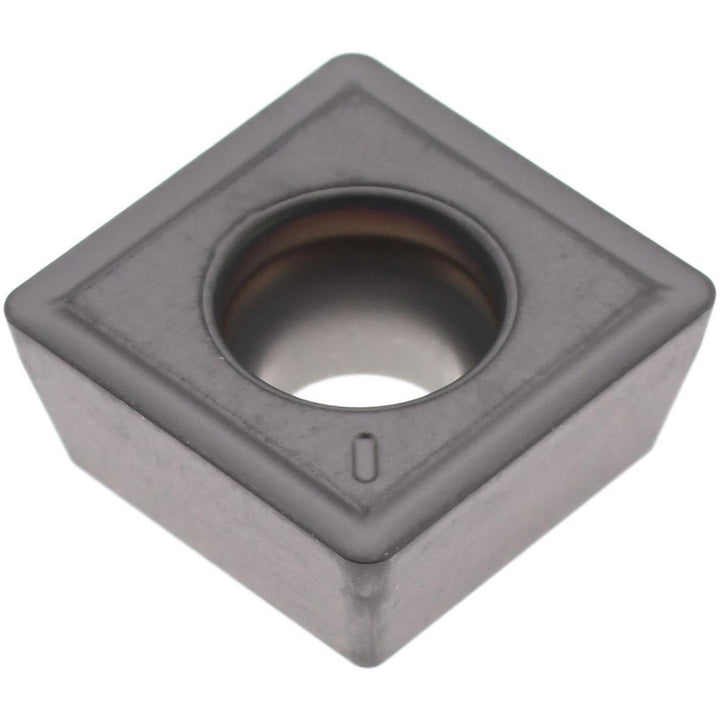

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 5504859
MFR# 5504859ISO/ANSI# ISO 13399Series DR-TWIST
$17.65List $22.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5504859 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerGF
Coating finishCoated
Coating processPVD
Corner radius0.0236
Hole diameter0.1330
Included angle degree90
Inscribed circle0.3543
Insert materialSolid Carbide
Insert size09T306
Insert size code09
Insert styleSOMT
Iso codeISO 13399
Length0.3540
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Primary workpiece materialUniversal
ShapeSquare
StandardsISO 13399
Thickness0.1500
Width0.3540
