Iscar

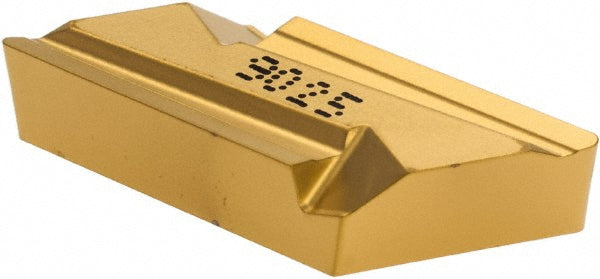

ISO 13399 Carbide Insert, Grade IC9025, TiCN - Iscar 5504866
MFR# 5504866ISO/ANSI# ISO 13399Series KNUX
$21.45List $27.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeIC9025
MaterialCarbide
CoatingTiCN
Description
The Iscar 5504866 is a ISO 13399 carbide indexable insert, grade IC9025, TiCN coated. Suited for steel, stainless steel.
Specifications
ApplicationsProfiling; Turning
ChipbreakerNone
Coating finishTiCN
Coating processCVD
Corner radius0.5000
Hole diameter0.0000
Included angle55
Inscribed circle in3/8
Insert handRight Hand
Insert height0.1875
Insert holding methodScrew
Insert length0.7770
Insert materialCarbide
Insert size code1604
Insert styleKNUX
Iso codeISO 13399
Manufacturer gradeIC9025
Material gradeP20; P30; M20; M30
Maximum depth of cut0.1576
Msc manufacturer numberKNUX 160405 R11
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle-12
Relief angle0
ShapeParallelogram
Side length0.7770
StandardsKNUX 160405 R11
Thickness in3/16
Width in3/8
