Iscar

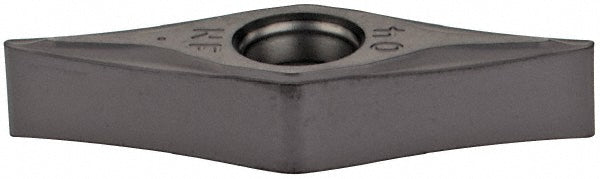

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5504880
MFR# 5504880ISO/ANSI# ISO 13399Series Isoturn
$18.55List $23.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC9/32
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5504880 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1100
Included angle35.0
Inscribed circle in9/32
Insert holding methodClamp; Pin
Insert length0.4882
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2.5
Insert styleVNMG
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC907
Material gradeC2; C3; C4
Maximum depth of cut0.0790
Primary workpiece materialH; M; S
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
