Iscar

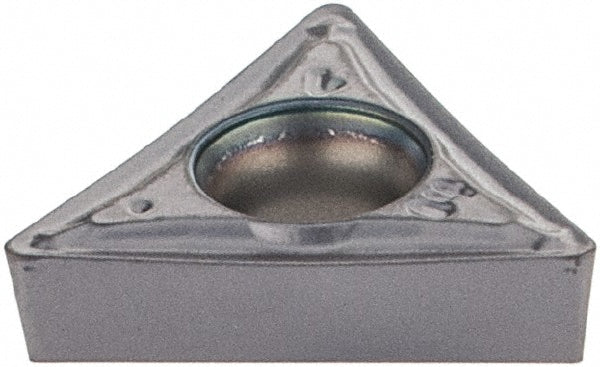

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5504886
MFR# 5504886ISO/ANSI# ISO 13399Series Isoturn
$13.41List $17.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5504886 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for k, m, p.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle60.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code2-1
Insert styleTCMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.1180
Primary workpiece materialK; M; P
RakePositive
Relief angle7
Secondary workpiece materialH; S
StandardsISO 13399
Tolerance codeM
