Iscar

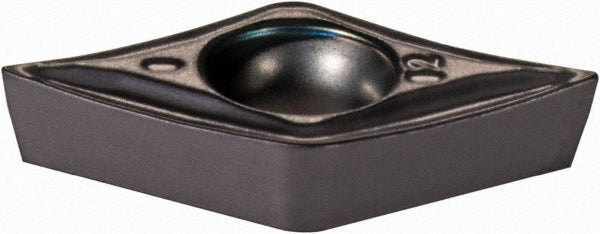

DCMT 2-0-SM Carbide Insert, Grade IC907, TiN - Iscar 5504903
MFR# 5504903ISO/ANSI# DCMT 2-0-SMCat# DCMT 2-0-SMSeries Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC907
MaterialCarbide
CoatingTiN
Description
The Iscar 5504903 is a DCMT 2-0-SM carbide indexable insert, grade IC907, TiN coated. Suited for universal.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius0.0080
Hole diameter0.1100
Included angle55
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.3030
Insert materialCarbide
Insert shapeDiamond
Insert size code2-0
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 2-0-SM
Length range0.3000 - 0.4000
Manufacturers catalog numberDCMT 2-0-SM
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.0790
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
