Carbide Insert, Grade IC908, TiAlN - Iscar 5504919

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5504919

MFR# 5504919Series IDI-SG

$87.29List $111.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

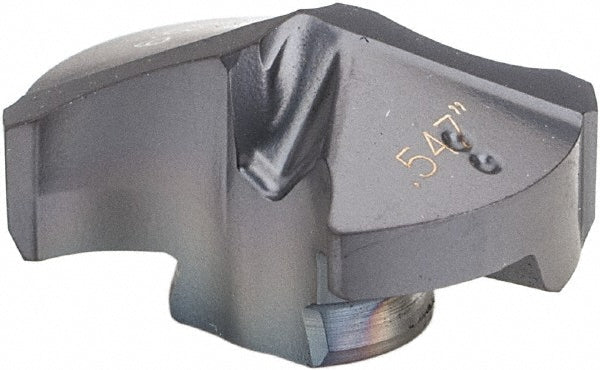

The Iscar 5504919 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in35/64
Drill point angle140
Flute typeSpiral
Functional length0.1370
Height0.2360
Included angle degree140
Insert geometrySG
Insert holding methodTwist
Insert seat size13
Iso numberIDI 139-SG
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2360
Point typeThinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleGeneral Purpose
Tip materialSolid Carbide
Web thinningWeb Thinned
