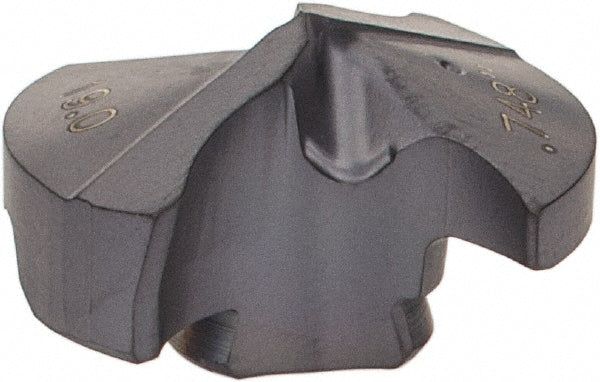

Carbide Insert, Grade IC908, TiAlN - Iscar 5504968

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5504968

MFR# 5504968Series IDI-SG

$99.79List $127.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5504968 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.7480
Drill point angle140
Flute length (mm)5.00
Flute typeHelical
Functional length0.1986
Height0.335
Included angle degree140
Insert geometrySG
Insert holding methodClamp
Insert seat size19
Iso numberIDI 190-SG
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.3349
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleIDI-SG
Tip materialSolid Carbide
Web thinningWeb Thinned
