Iscar

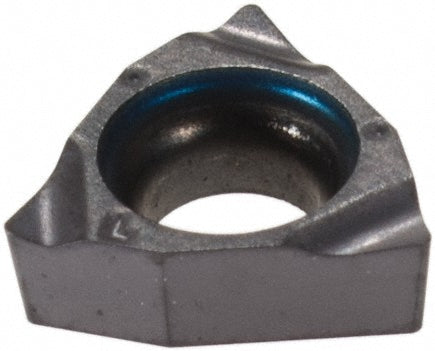

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5504979
MFR# 5504979ISO/ANSI# ISO 13399Series Isoturn
$23.39List $30.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTrigon
GradeIC907
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5504979 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.
Specifications
ChipbreakerL
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.0880
Included angle80
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTrigon
Insert size code520
Insert styleWBGT
Iso codeISO 13399
Length0.0858
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.0394
Primary workpiece materialUniversal
Relief angle5
StandardsISO 13399
