Iscar

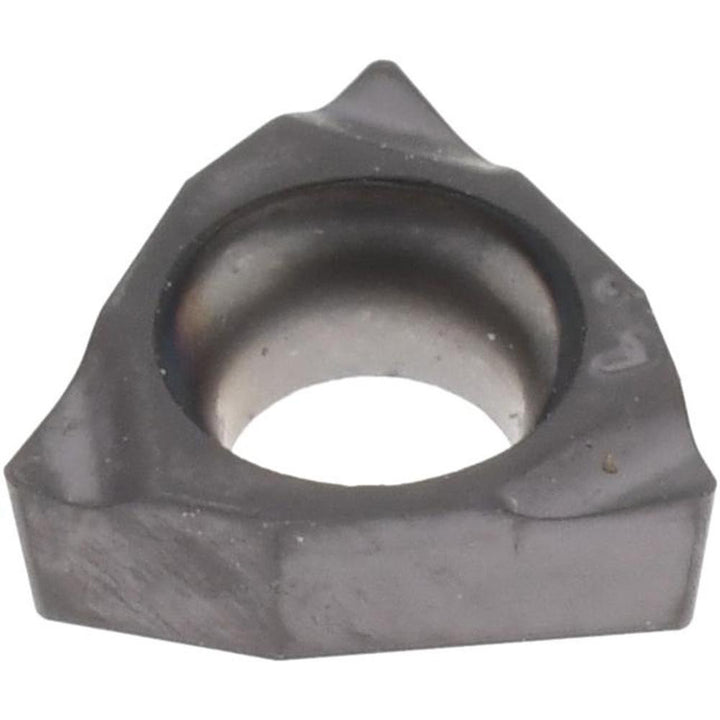

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5504980
MFR# 5504980ISO/ANSI# ISO 13399Series Isoturn
$23.39List $30.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5504980 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting directionLeft Hand
Hole diameter0.0880
Included angle80
Inscribed circle0.1563
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code520
Insert styleWBGT
Iso codeISO 13399
Length0.0860
Manufacturer gradeIC908
Maximum depth of cut0.0390
Primary workpiece materialUniversal
RakePositive
Relief angle5
ShapeTrigon
StandardsISO 13399
Thickness0.0626
