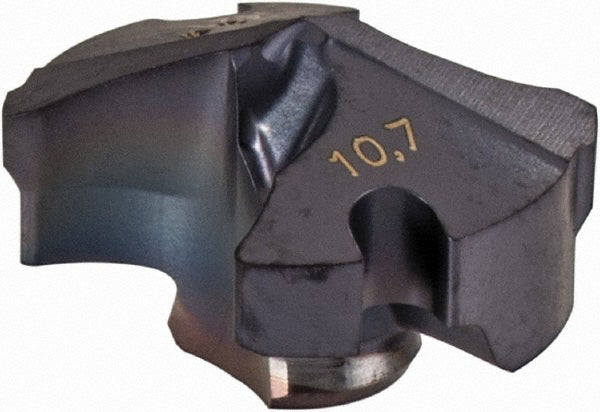

Carbide Insert, Grade IC908, TiAlN - Iscar 5504987

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5504987

MFR# 5504987Series IDI-SG

$83.47List $106.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5504987 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in27/64
Drill point angle140
Flute length (mm)3.00
Flute typeHelical
Functional length0.1320
Height0.209
Included angle degree140
Insert geometrySG
Insert holding methodClamp
Insert seat size10
Iso numberIDI 107-SG
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2088
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleIDI-SG
Tip materialSolid Carbide
Web thinningWeb Thinned
