Carbide Insert, Grade IC908, TiAlN - Iscar 5505026

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5505026

MFR# 5505026Series IDI-SG

$91.67List $117.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

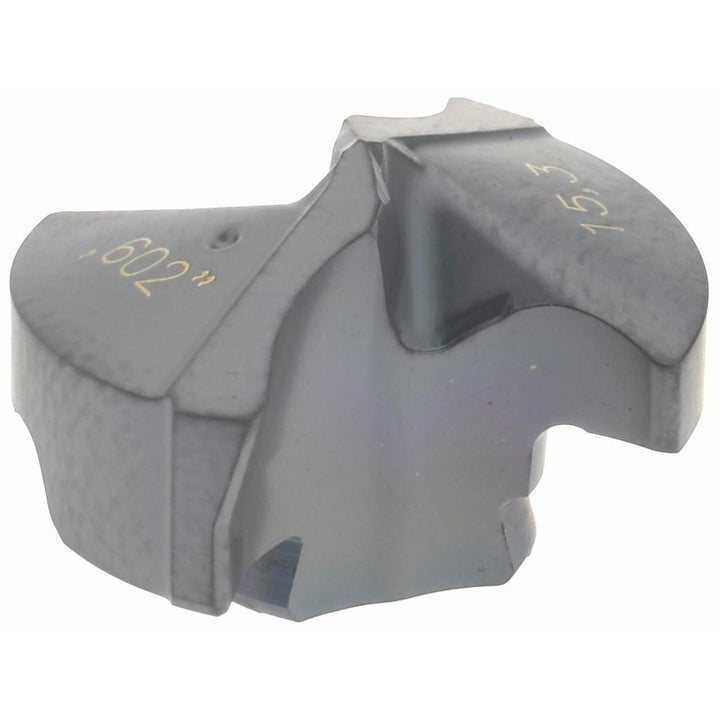

The Iscar 5505026 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.6020
Drill point angle140
Flute length (mm)5.00
Flute typeHelical
Functional length0.1820
Height0.291
Included angle degree140
Insert geometrySG
Insert holding methodClamp
Insert seat size15
Iso numberIDI 153-SG
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2915
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleIDI-SG
Tip materialSolid Carbide
Web thinningWeb Thinned
