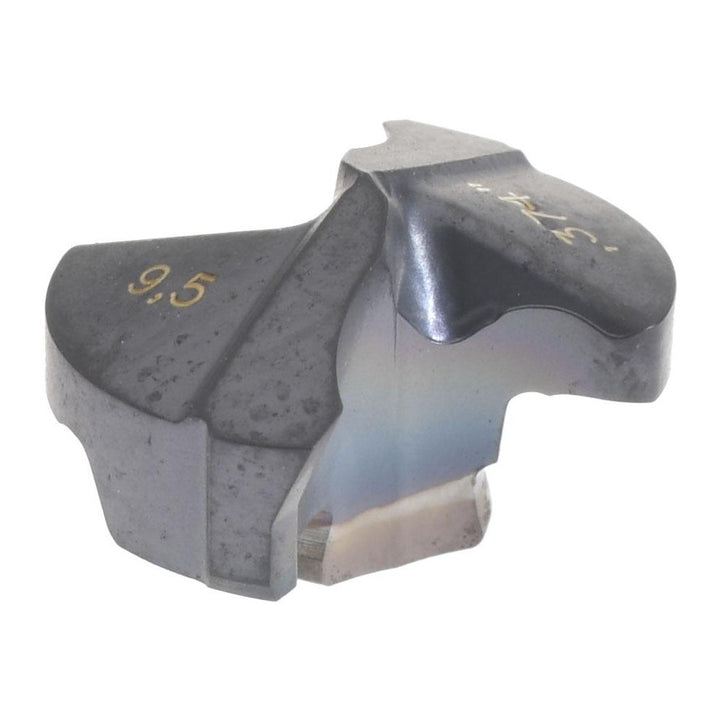

Carbide Insert, Grade IC908, TiAlN - Iscar 5505094

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5505094

MFR# 5505094Series IDI-SG

$79.41List $101.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5505094 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3740
Drill point angle140
Flute length (mm)3.00
Flute typeHelical
Functional length0.1013
Height0.169
Included angle degree140
Insert geometrySG
Insert holding methodClamp
Insert seat size9
Iso numberIDI 095-SG
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.1695
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleIDI-SG
Tip materialSolid Carbide
Web thinningWeb Thinned
