Iscar

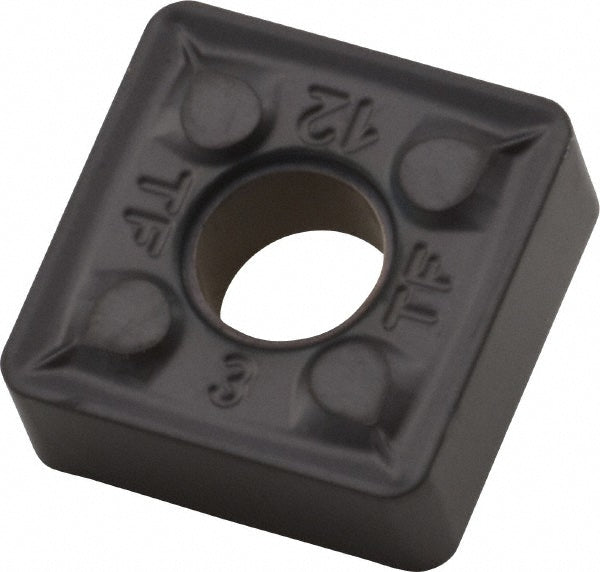

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5505134
MFR# 5505134ISO/ANSI# ISO 13399Series Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5505134 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Included angle90.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeSquare
Insert size code433
Insert styleSNMG
Insert thickness in3/16
Iso codeISO 13399
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1575
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
Width in1/2
