Iscar

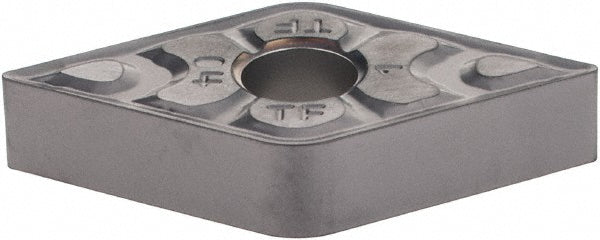

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5505137
MFR# 5505137ISO/ANSI# ISO 13399Series Isoturn
$22.29List $28.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5505137 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2030
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.1180
Primary workpiece materialH; M; S
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
