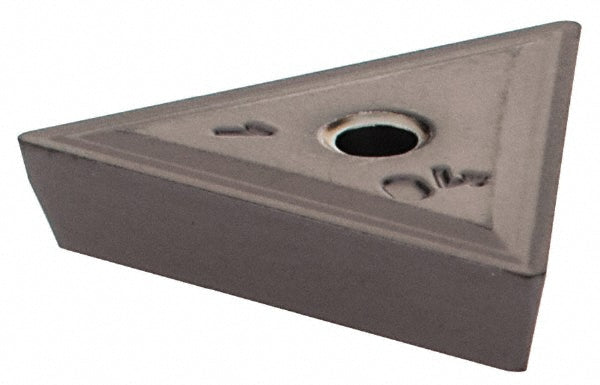

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5505154
MFR# 5505154ISO/ANSI# ISO 13399Series Isoturn
$15.75List $20.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5505154 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerR
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code321
Insert styleTPMR
Insert thickness in1/8
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.1575
Primary workpiece materialH; M; S
RakePositive
Relief angle11
StandardsISO 13399
Tolerance codeM
