Iscar

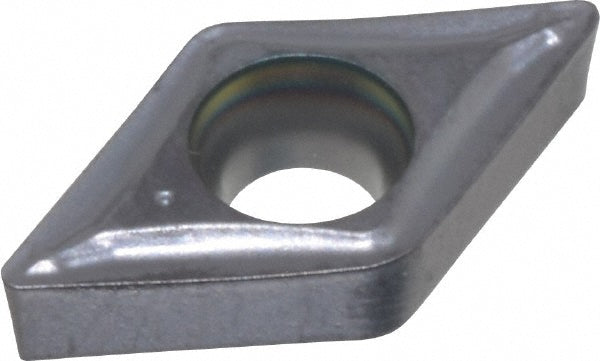

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5505156
MFR# 5505156ISO/ANSI# ISO 13399Series Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5505156 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle55.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.3031
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-1
Insert styleDCMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.0980
Primary workpiece materialH; M; S
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
