Iscar

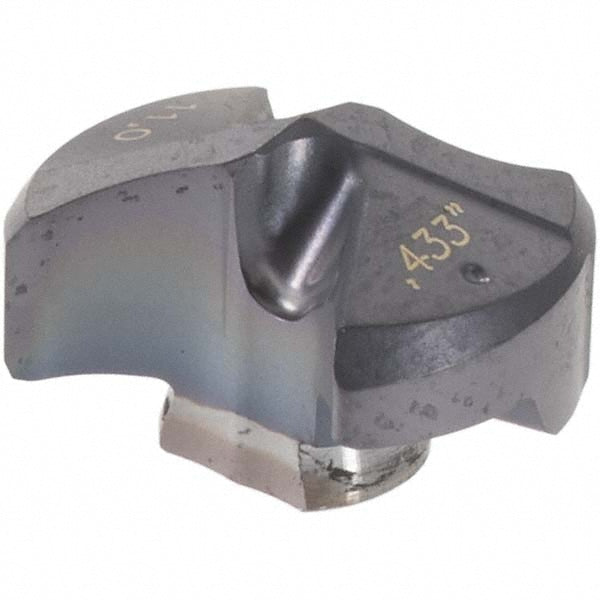

Carbide Insert, Grade IC908, TiAlN - Iscar 5505190
MFR# 5505190Series IDI-SK
$83.47List $106.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5505190 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.4330
Drill point angle140
Flute typeSpiral
Functional length0.1380
Height0.2170
Included angle degree140
Insert geometryK
Insert holding methodTwist
Insert seat size11
Iso numberIDI 110-SK
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2170
Point typeThinned
Primary workpiece materialCast Iron
Secondary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleCorner Chamfer
Tip materialSolid Carbide
Web thinningWeb Thinned
