Iscar

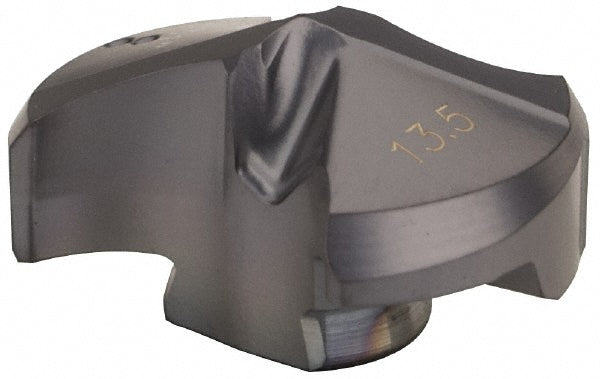

Carbide Insert, Grade IC908, TiAlN - Iscar 5505198
MFR# 5505198Series IDI-SK
$88.84List $111.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5505198 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in17/32
Drill point angle140
Flute typeSpiral
Functional length0.1390
Height0.2360
Included angle degree140
Insert geometryK
Insert holding methodTwist
Insert seat size13
Iso numberIDI 135-SK
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2360
Point typeThinned
Primary workpiece materialCast Iron
Secondary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleCorner Chamfer
Tip materialSolid Carbide
Web thinningWeb Thinned
