Iscar

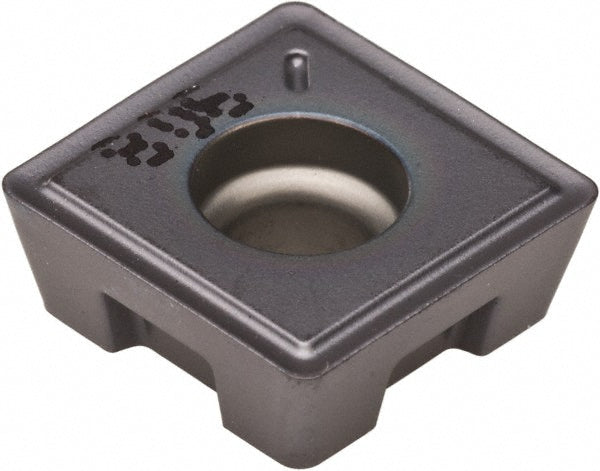

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 5505233
MFR# 5505233ISO/ANSI# ISO 13399Series DR-TWIST
$18.66List $23.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5505233 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerGF
Coating finishCoated
Coating processPVD
Corner radius0.0315
Hole diameter0.2200
Included angle degree90
Inscribed circle0.5000
Insert materialSolid Carbide
Insert size120408
Insert size code12
Insert styleSOMT
Iso codeISO 13399
Length0.5000
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Primary workpiece materialUniversal
ShapeSquare
StandardsISO 13399
Thickness0.1874
Width0.5000
