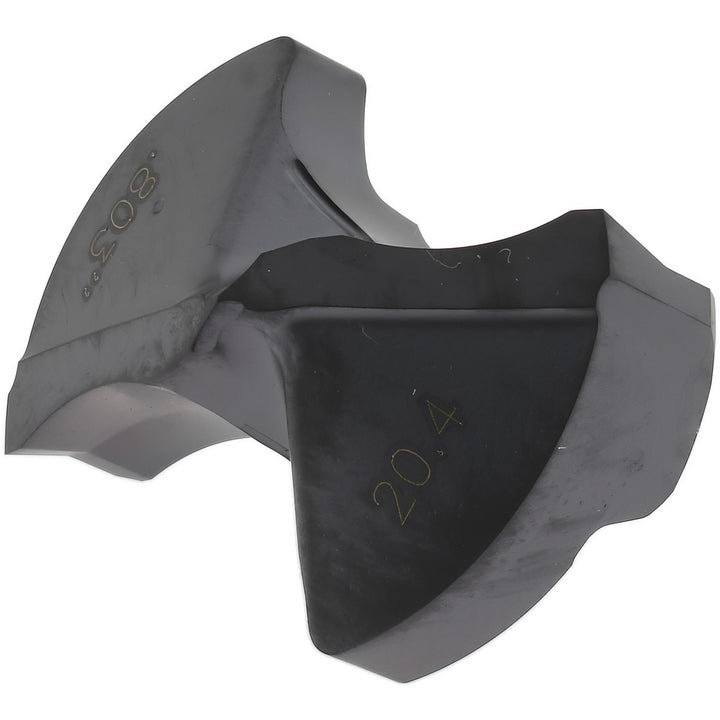

Carbide Insert, Grade IC908, TiAlN - Iscar 5505234

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5505234

MFR# 5505234Series IDI-SG

$99.79List $127.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5505234 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.8030
Drill point angle140
Flute typeSpiral
Functional length0.2200
Height0.3660
Included angle degree140
Insert geometrySG
Insert holding methodTwist
Insert seat size20
Iso numberIDI 204-SG
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.3660
Point typeThinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleGeneral Purpose
Tip materialSolid Carbide
Web thinningWeb Thinned
