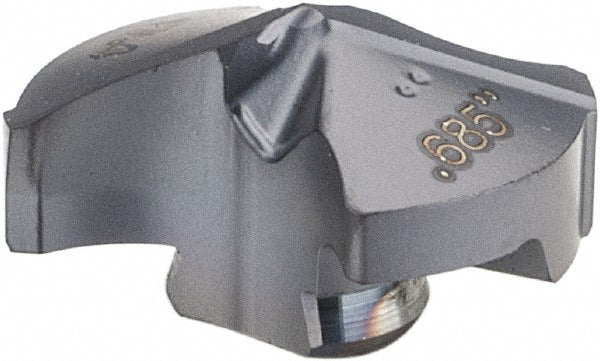

Carbide Insert, Grade IC908, TiAlN - Iscar 5505238

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5505238

MFR# 5505238Series IDI-SG

$99.79List $127.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5505238 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.6850
Drill point angle140
Flute typeSpiral
Functional length0.1670
Height0.3110
Included angle degree140
Insert geometrySG
Insert holding methodTwist
Insert seat size17
Iso numberIDI 174-SG
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.3110
Point typeThinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleGeneral Purpose
Tip materialSolid Carbide
Web thinningWeb Thinned
