Iscar

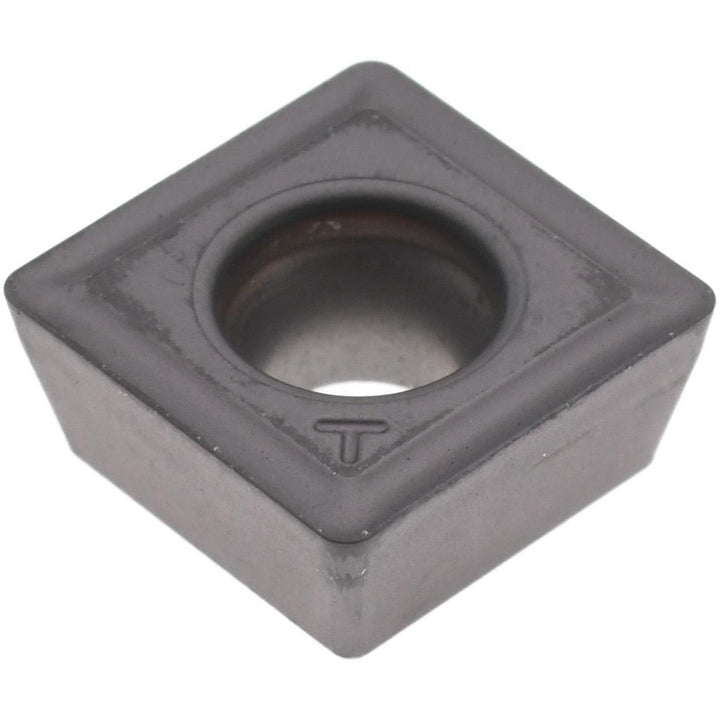

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 5505240
MFR# 5505240ISO/ANSI# ISO 13399Series DR-TWIST
$17.96List $22.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5505240 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerDT
Coating finishCoated
Coating processPVD
Corner radius0.0236
Inscribed circle0.3543
Insert materialSolid Carbide
Insert size09T306
Insert size code09
Insert styleSOMT
Iso codeISO 13399
Length0.3540
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Primary workpiece materialUniversal
ShapeSquare
StandardsISO 13399
Thickness0.1500
Width0.3540
