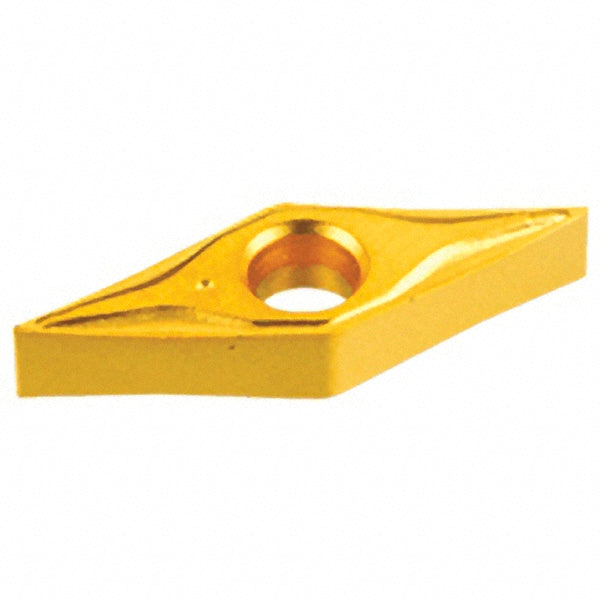

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5505242
MFR# 5505242ISO/ANSI# ISO 13399Series Isoturn
$31.43List $40.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC9/32
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5505242 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Included angle35.0
Inscribed circle in9/32
Insert holding methodClamp; Pin
Insert length0.4882
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2.5-0
Insert styleVNGG
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.0984
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeG
