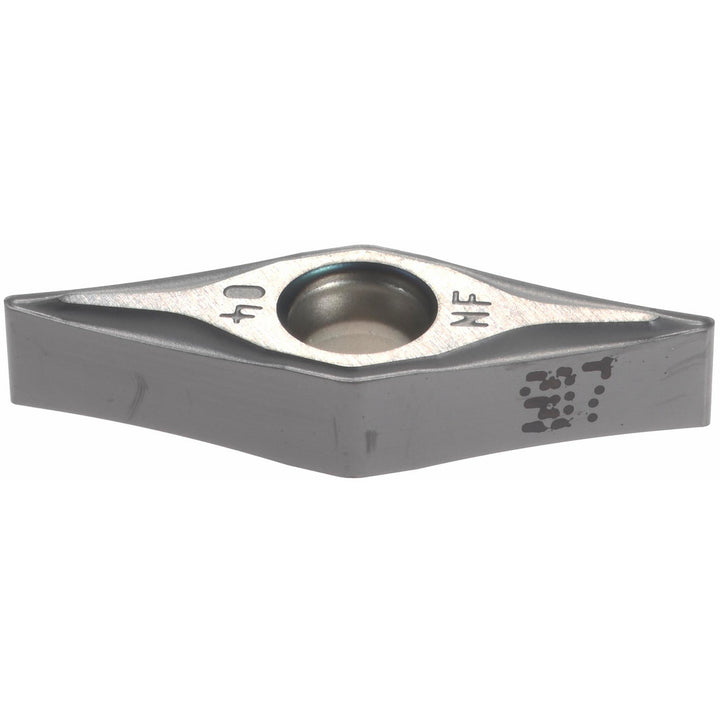

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5505244

Iscar

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5505244

MFR# 5505244ISO/ANSI# VNGG12T304Series Isoturn

$31.43List $40.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC9/32
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC907
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5505244 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.

Specifications

Ansi insert codeVNGG2.5-1
Ansi size code2.5-1
Chip breakerNF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Mo
Included angle35
Inscribed circle in9/32
Insert holding methodClamp; Pin
Insert length0.4882
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code2.5-1
Insert styleVNGG
Insert thickness in5/32
Iso codeISO 13399
Iso insert codeVNGG12T304
Iso size code12T304
Length range0.4000 - 0.5000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1181
Primary workpiece materialUniversal
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeG
