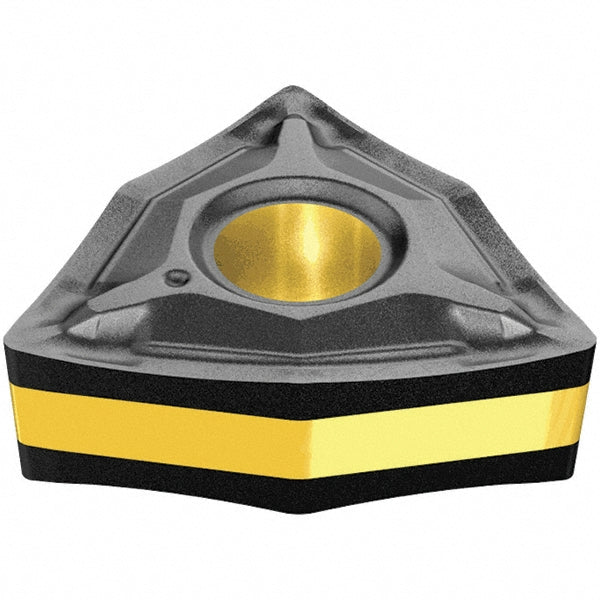

ISO 13399 Cermet Insert, Grade IC520N, TiCN - Iscar 5505278

Iscar

ISO 13399 Cermet Insert, Grade IC520N, TiCN - Iscar 5505278

MFR# 5505278ISO/ANSI# WNMG080402Series Isoturn

$16.45List $21.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeIC520N
MaterialCermet
CoatingTiCN

Description

The Iscar 5505278 is a ISO 13399 cermet indexable insert, grade IC520N, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeWNMG432
Ansi size code432
Chip breakerWG
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCermet
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeWNMG080402
Iso size code080402
Length range0.3000 - 0.4000
Manufacturer gradeIC520N
Maximum depth of cut0.1378
Primary workpiece materialStainless Steel; Steel
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
