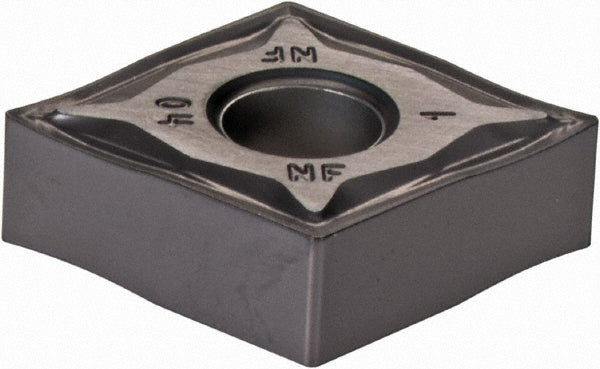

CNMG 431-NF Solid Carbide Insert, Grade IC907, TiN - Iscar 5505280
MFR# 5505280ISO/ANSI# CNMG 431-NFCat# CNMG 431-NFSeries Isoturn
$16.66List $21.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5505280 is a CNMG 431-NF solid carbide indexable insert, grade IC907, TiN coated. Suited for universal.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 431-NF
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG 431-NF
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
