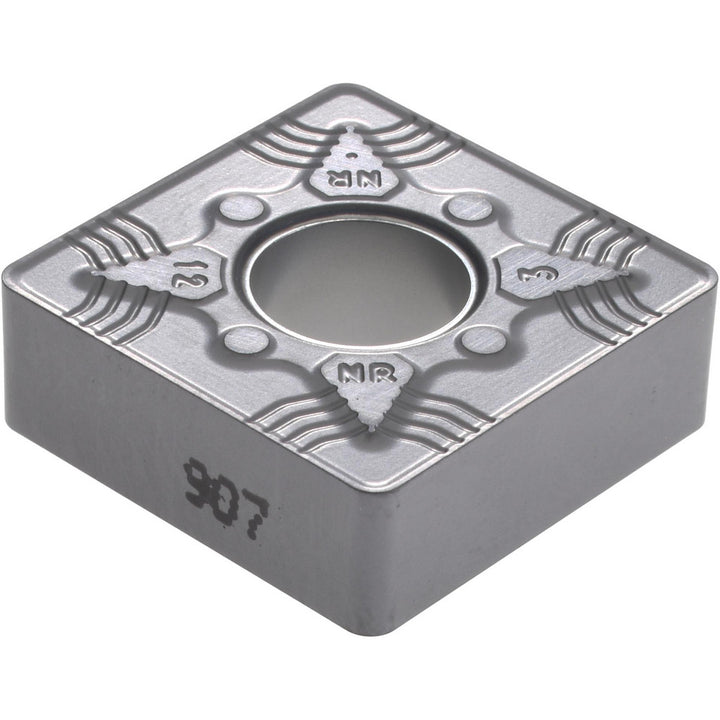

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5505288

Iscar

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5505288

MFR# 5505288ISO/ANSI# SNMG190612Series Isoturn

$32.35List $41.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeS - Square
GradeIC907
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5505288 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated.

Specifications

Ansi insert codeSNMG643
Ansi size code643
Chip breakerNR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0472
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Mo
Included angle90
Inscribed circle0.7500
Insert materialCarbide
Insert shapeS - Square
Insert size code643
Insert styleSNMG
Iso codeISO 13399
Iso insert codeSNMG190612
Iso size code190612
Manufacturer gradeIC907
Maximum depth of cut0.3150
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
