Iscar

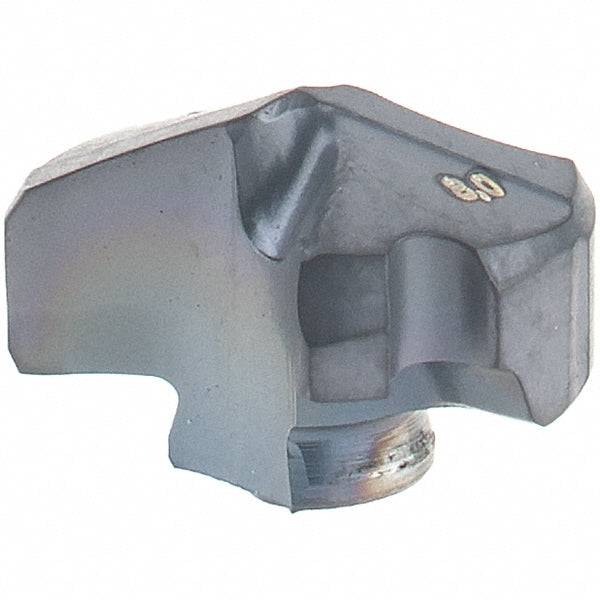

Carbide Insert, Grade IC908, TiAlN - Iscar 5505298
MFR# 5505298Series IDI-SK
$79.41List $101.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5505298 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3150
Drill point angle140
Flute typeSpiral
Functional length0.1040
Height0.1610
Included angle degree140
Insert geometryK
Insert holding methodTwist
Insert seat size8
Iso numberIDI 080-SK
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.1610
Point typeThinned
Primary workpiece materialCast Iron
Secondary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleCorner Chamfer
Tip materialSolid Carbide
Web thinningWeb Thinned
