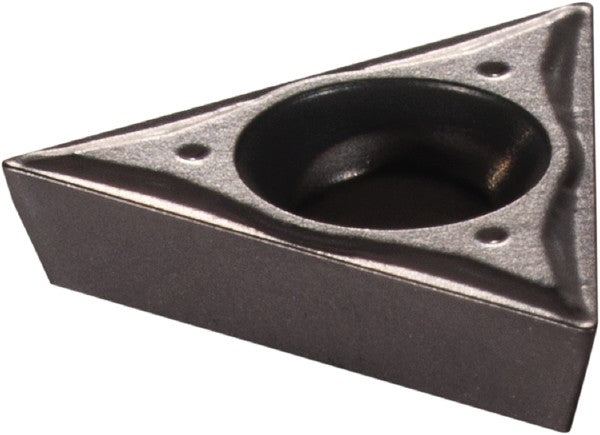

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5505333
MFR# 5505333ISO/ANSI# ISO 13399Series Isoturn
$14.89List $19.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5505333 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerT
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1181
Included angle60.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code2-0
Insert styleTPMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.0790
Primary workpiece materialH; M; S
RakePositive
Relief angle11
StandardsISO 13399
Tolerance codeM
