Iscar

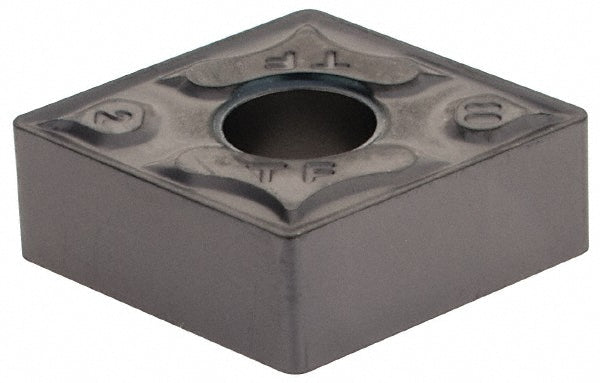

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5505377
MFR# 5505377ISO/ANSI# ISO 13399Series Isoturn
$34.12List $43.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5505377 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2500
Included angle80.0
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length0.6260
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.2362
Primary workpiece materialH; M; S
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
