Iscar

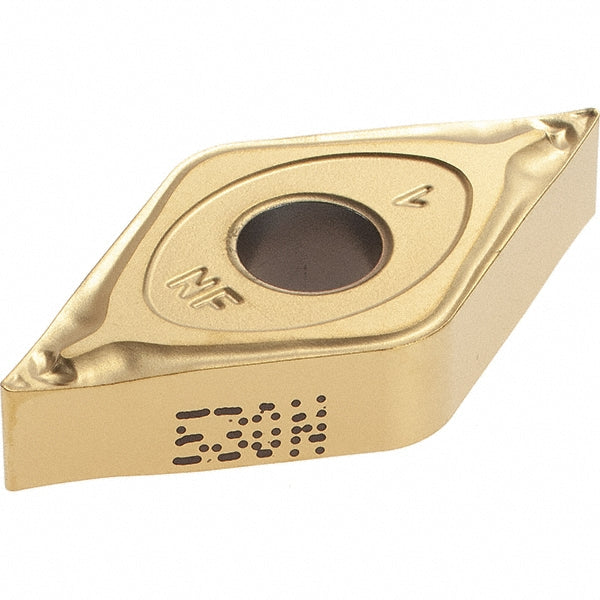

DNMG 431-NF Cermet Insert, Grade IC530N, TiCN - Iscar 5505382
MFR# 5505382ISO/ANSI# DNMG 431-NFCat# DNMG 431-NFSeries Isoturn
$20.97List $26.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC530N
MaterialCermet
CoatingTiCN
Description
The Iscar 5505382 is a DNMG 431-NF cermet indexable insert, grade IC530N, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6100
Insert materialCermet
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 431-NF
Length range0.6000 - 0.6500
Manufacturers catalog numberDNMG 431-NF
Manufacturer gradeIC530N
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
