Iscar

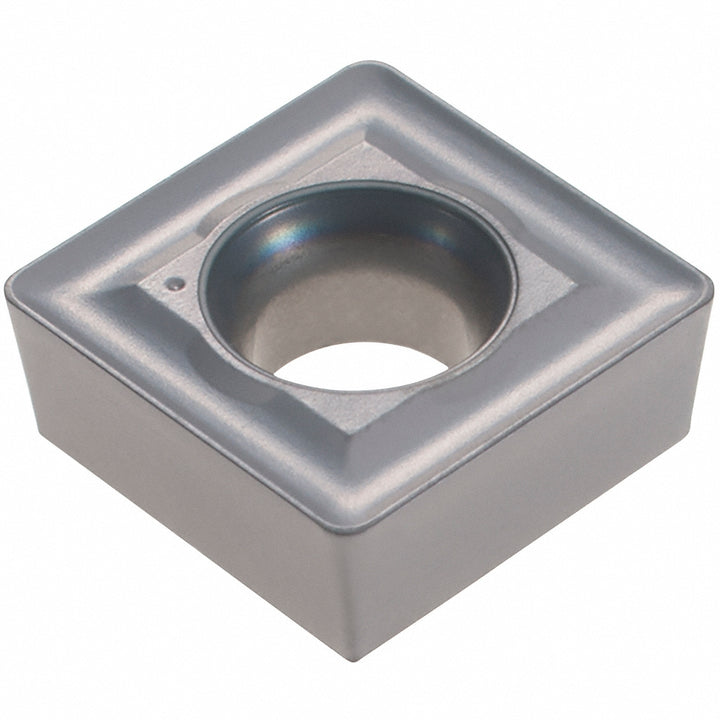

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5505521
MFR# 5505521ISO/ANSI# ISO 13399Series Isoturn
$21.10List $26.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5505521 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.
Specifications
Chip breaker19
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Hole diameter0.2170
Included angle90.0
Inscribed circle0.5000
Insert materialSolid Carbide
Insert shapeSquare
Insert size code432
Insert styleSCMT
Insert thickness0.1874
Iso codeISO 13399
Manufacturer gradeIC907
Maximum depth of cut0.3150
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
Width in1/2
