Iscar

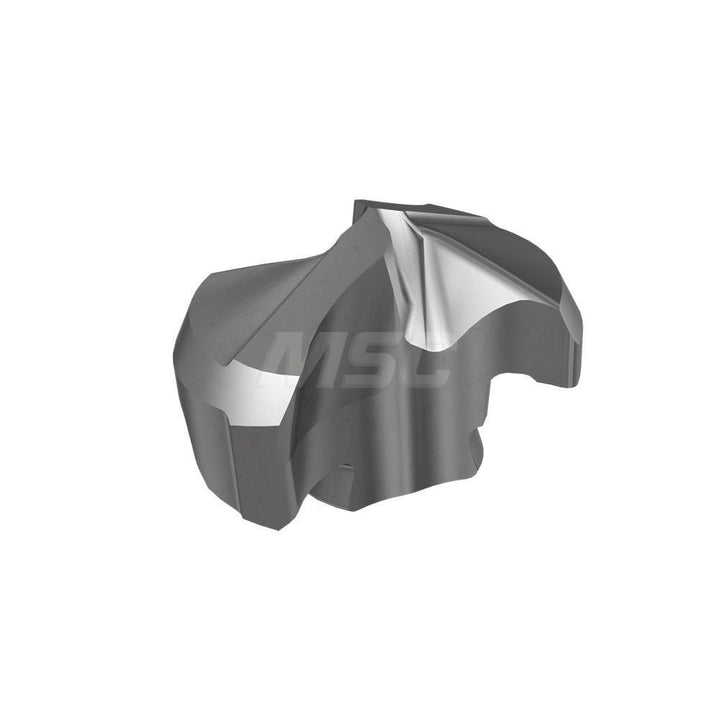

Carbide Insert, Grade IC908, TiAlN - Iscar 5505563
MFR# 5505563Series IDI-SK
$101.56List $127.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5505563 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.8620
Drill point angle140
Flute typeSpiral
Functional length0.2170
Height0.3660
Included angle degree140
Insert geometryK
Insert holding methodTwist
Insert seat size21
Iso numberIDI 219-SK
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.3660
Point typeThinned
Primary workpiece materialCast Iron
Secondary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleCorner Chamfer
Tip materialSolid Carbide
Web thinningWeb Thinned
