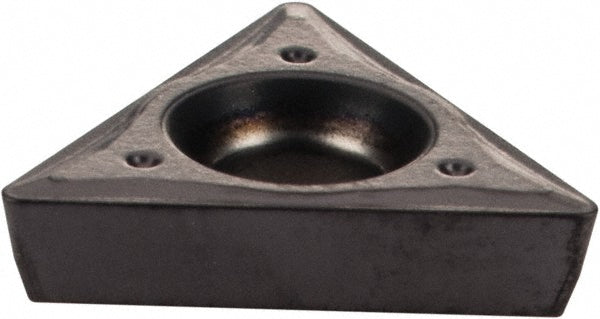

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5505570
MFR# 5505570ISO/ANSI# ISO 13399Series Isoturn
$14.89List $19.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5505570 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerT
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1181
Included angle60.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code2-1
Insert styleTPMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.1180
Primary workpiece materialH; M; S
RakePositive
Relief angle11
StandardsISO 13399
Tolerance codeM
